Developing Business Activities on a Technology Base in Lightning Surge Protection with a View to the Next Generation

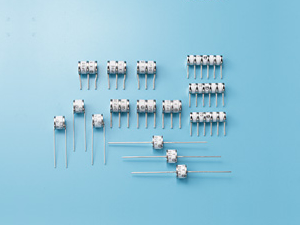

These are the surge-protective devices that guard the system equipment that is connected to the telecommunication, control, and power lines from-transient surge voltage. Nisshin Electric’s GDTs have been supported by our long-standing technical experience in this field, and the Company carries various models suitable for many different conditions.
| Type | DC Sparkover Voltage (100V/s) | Series |
|---|---|---|
| 2-electrode type | 75V～3600V | SRYH,SRYG,SRYA,2PB |
| 3-electrode type | 90V～600V | SR3YP,3PB |
| 5-electrode type | 230V | SR5YD |
| Ultra-fast action type | 200V～230V | 2PX |
| Surface Mount type | 90V～300V | 2PB-SMD,2PE-SMD,3PB-SMD |
Nisshin Electric is the Authorized Distributor in Japan for Fair-Rite Products Corp. and Micrometals Inc., of the United States.

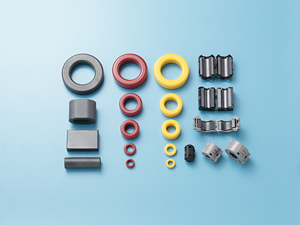

We carry various models of EMI ferrite cores (including toroidal cores, sleeves, lead beads, data line noise filters, and dust cores).

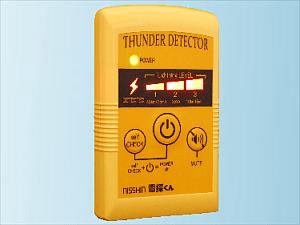

Nisshin Electric’s “Raitan-kun” is a Portable Thunder Detector. It picks up lightning discharges as far as 40-kilometer away, and gives alarms in three levels (beep and LED lamp) based on the lightning strength and distance from the detector. This will help you to quickly take shelter from potential hazards during outdoor work, construction, mountain climbing, hiking, and other activities.
Catalog Download (PDF)
The Thunder Detector is designed to detect thunder that is accompanied by lightening as well as thunder that occurs at close range but is not accompanied by lightening within a 40-kilometer radius. When thunder that exceeds the preset danger level is detected, an alarm buzzer goes off. This detector is mainly used in communication or recreational facilities, to avert damage to facilities and injury to people and for providing assistance for taking appropriate action.

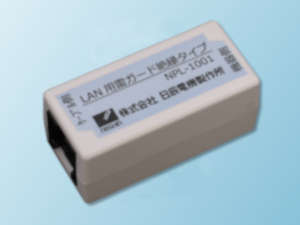

The NPL-1001 is a surge protective device for Ethernet. It has a built-in pulse transformer and has a surge withstand voltage value of 10 kV. Easy to install without the need to connect a ground wire.
Catalog Download (PDF)
